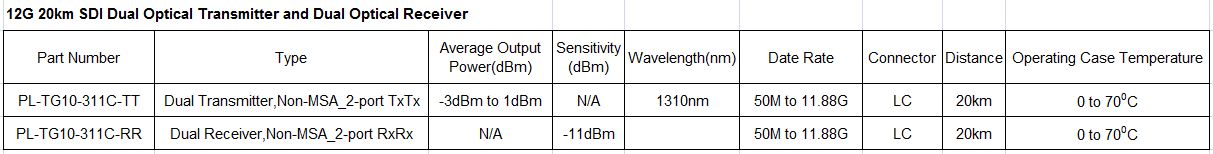

Ø  SD/HD/3G/6G/12G-SDI SFP Dual Transmitter

Ø  ST 259, ST 292-1,ST 424, ST-2081 andST-2082 compatible

Ø  Robust error free transmission of signals from50Mb/s to 12Gb/s with up to 20km single-mode fiber

Ø  Supports video pathological patterns forSD-SDI,HD-SDI 3G-SDI 6G-SDI 12G-SDI

Ø  Pluggable and hot-swappable

Ø  Two independent laser disable pins

Ø  1310nm DFB laser transmitter

Ø  Single 3.3V power supply

Ø  Operating case temperature: 0 to +70°C

Ø  SFP Package with LC Connector Interface

Ø  Digital diagnostics and control via I2C interface

Ø  Pb-free and RoHS compliant

Ø  Class I laser product







Ø  SD/HD/3G/6G/12G-SDI SFP Dual Optical Receiver

Ø  ST 259, ST 292-1,ST 424, ST-2081 andST-2082 compatible

Ø  Robust error free reception of signals from50Mb/s to 12Gb/s with up to 20km single-mode fiber

Ø  Supports video pathological patterns for SD-SDI,HD-SDI 3G-SDI 6G-SDI 12G-SDI

Ø  Pluggable and hot-swappable

Ø  Dual PIN Receiver

Ø  Single 3.3V power supply

Ø  Operating case temperature: 0 to +70°C

Ø  SFP Package with LC Connector Interface

Ø  Pb-free and RoHS compliant

Ø  Class I laser product
