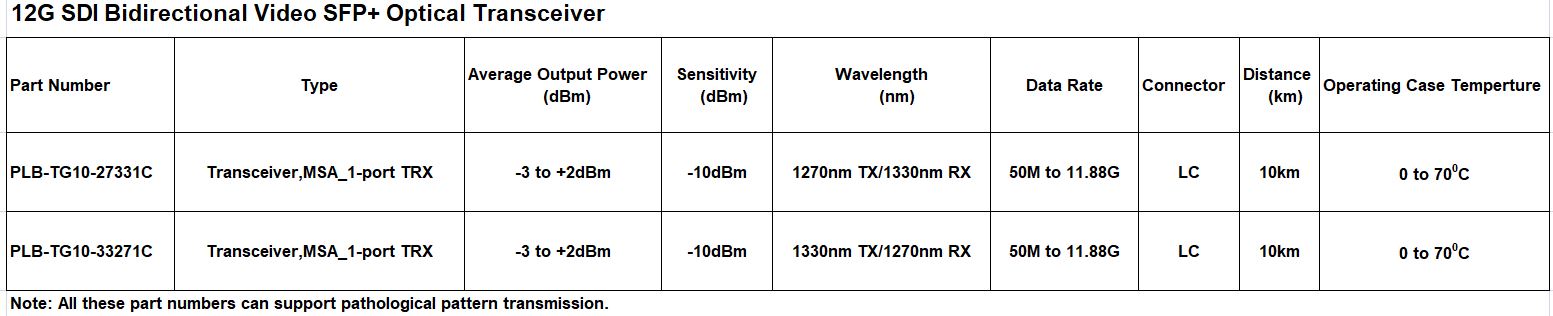

12G SDI Bidirectional Video SFP+ Optical Transceiver



Features:

Ø  SDI Multi-rate optical bidirectional transceiver for 12G-SDI, 6G-SDI, 3G-SDI HD-SDI and SD-SDI

Ø  1 port bidirectional operation over single fiber (singlemode)

Ø  Support for SMPTE 2082, SMPTE 2081, SMPTE 424M, and SMPTE 292M

Ø  Support pathological pattern transmission

Ø  Single 3.3V power supply

Ø  Operating case temperature: 0 to +70°C

Ø  Operating data rate up to11.88Gbps

Ø  Transmission distance with 9/125μm SMF up to 10km at 11.88G

Ø  1270nm TX Wavelength DFB / 1330nm RX Wavelength PIN receiver for PLB-TG10-27331C

Ø  1330nm TX Wavelength DFB / 1270nm RX Wavelength PIN receiver for PLB-TG10-33271C

Ø  Pluggable and hot swappable

Ø  Lead free and RoHS compliant

Ø  Class I laser product

Ø  Compliant with SFP MSA

Ø  Compliant with SFF-8472
