型号:3G 6G 12G-SDI Video SFP/SFP+


Video Applications:



Ø  3G-SDI Video optical transmission with pathological pattern



Ø  6G-SDI Video optical transmission with pathological pattern



Ø  12G-SDI Video optical transmission with pathological pattern

3G 6G 12G-SDI Video SFP/SFP+ 详情

Download List

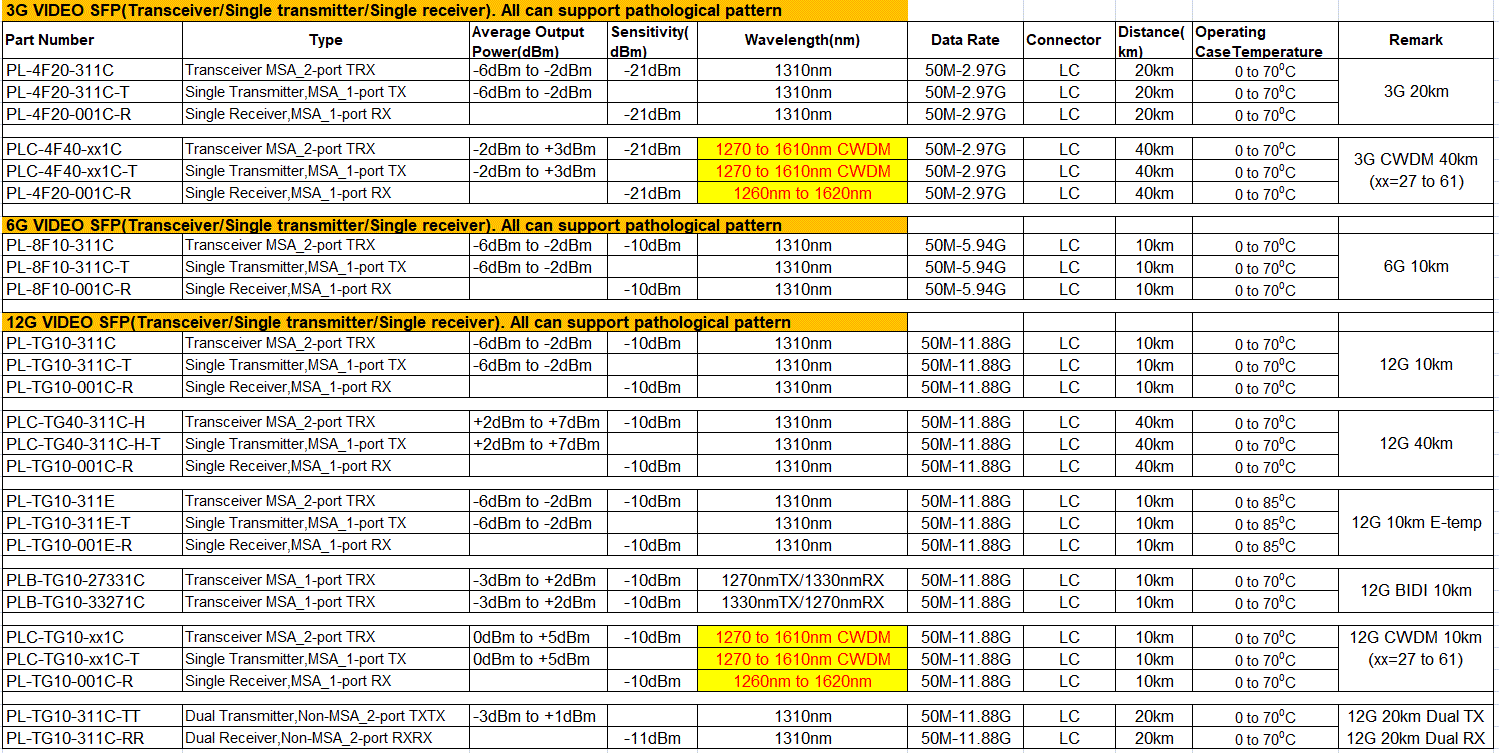

Video SFP optical transceivers



Features



Ø   Operating data rate up to 5.94 Gbps/11.88Gbps

Ø   Transmission distance with 9/125 μm SMF following :45km @ 270/360 Mbps; 35km @ 1.485 Gbps; 25km @ 2.97 Gbps;12.5km @5.94 Gbps;10km@11.88Gbps

Ø   1310nm DFB laser transmitter and PIN receiver

Ø   Single 3.3V power supply

Ø   Operating case temperature: 0 to +70°C

Ø   100Ω differential AC coupled CML Outputs

Ø   Hot pluggable SFP Footprint LC Connector Interface

Ø   Digital diagnostic monitor interface compliant with SFF-8472

Ø   Class I laser product

Ø   Compliant with SFP MSA

Ø   Compliant with SFF-8472

Ø   Compliant with FCC 47 CFR Part 15, Class B

Ø   Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I

Ø   RoHS compliance

Ø   Compliant with SMPTE 424M/297M (1080p50/59.94/60 2.97 Gbps)

Ø   Compliant with SMPTE 292M/297M (HDTV - 1.485 Gbps)

Ø   Compliant with SMPTE 259M/297M (SDTV - 270/360 Mbps)
