型号:100BASE-T Copper




Applications



Ø   100BASE-T Copper



100BASE-T Copper 详情

Download List

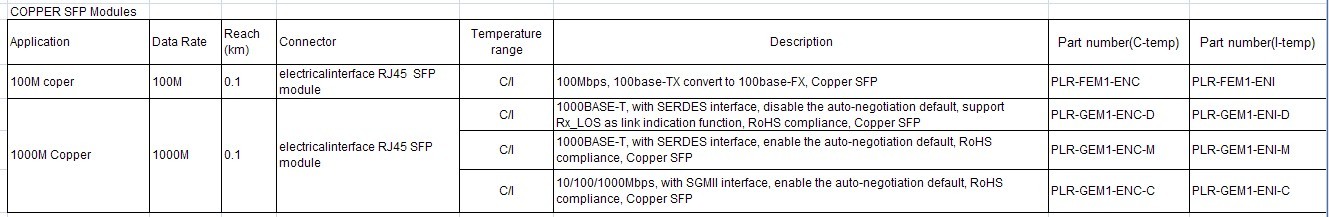

100BASE-T Copper SFP transceivers



Features

Ø   100Mbps bi-direction data links

Ø   100m transmission over unshielded twisted-pair (UTP) Category 5 Cable

Ø   Perform any necessary scrambling /descrambling between the 100Base-TX and 100Base-FX formats.

Ø   Support intelligent auto-negotiation 100BASE-T operation in host systems

Ø   Compliant with IEEE Std 802.3TM-2002

Ø   Hot-pluggable capability

Ø   SFP form with compact RJ-45 connector

Ø   Very low EMI and excellent ESD protection

Ø   +3.3V single power supply

Ø   Low power dissipation

Ø   Detailed product information in EEPROM

Operating case temperature: 0 to +70°C;  Industrial: -40 to +85

Ø   Compatible with SFP MSA

Ø   Compliant with IEEE Std 802.3TM-2002

Ø   Compatible with FCC 47 CFR Part 15, Class B

Ø   Compliant with RoHS
