Model：40G QSFP+
QSFP+ (Quad Small Form-factor Pluggable Plus) is a new Multi-Source Agreement (MSA) for high speed application, such as 40Gbps, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps.
The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4  /  40GBASE-LR4 applications. It combines the higher density attractions of parallel modules with some of the key advantages normally associated with SFP+ based modules. It is intended for use short reach applications in switches, routers and data center equipment where it provides higher density and lower cost when compared with standard SFP+ modules.

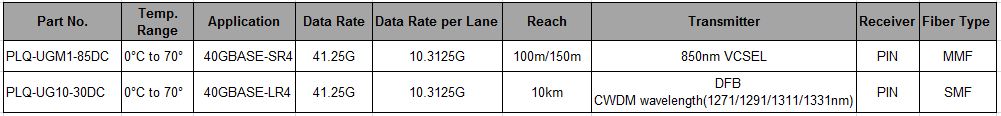

40G QSFP+ Details



40GBASE-SR: 41.25G/VCSEL 850nm/100m QSFP+ Transceiver

PLQ-UGM1-85DC Series    QSFP SR4 / QSFP+ SR4 It is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 8 or 12 fiber MTP  (MPO) connector.

Features

Ø  Compliant to the Industry Standard SFF-8436 QSFP+
Specification Revision 3.6
Ø  Compliant with IEEE 802.3ba 40GBASE-SR4
Ø  Single 3.3V Supply Voltage
Ø  Max. Power <1.5W
Ø  850nm VCSEL Array and PIN Receiver Array
Ø  MTP® (MPO) Optical Connector
Ø  Maximum Data Rate per Lane: 10.3125Gb/s
Ø  Two Wire Serial (TWS) Interface with Digital Diagnostic Monitoring
Ø  RoHS Compliant
Ø  Operating temperature range:
Commercial 0°C to 70°; PLQ-UGM1-85DC


40GBASE-LR: 41.25G/DFB CWDM 1271nm/1291nm/1311nm/1331nm/10km QSFP+ Transceiver

PLQ-UG10-30DC Series    QSFP LR4 / QSFP+ LR4  It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 10km.

Features

Ø  Compliant to the Industry Standard SFF-8436 QSFP+
Specification Revision 3.6
Ø  Compliant with IEEE 802.3ba 40GBASE-LR4
Ø  Single 3.3V Supply Voltage
Ø  Max. Power consumption2.5W, 1.5W in Low Power Mode
Ø  CWDM DFB laser and PIN Receiver Array
Ø  QSFP+ MSA package with duplex LC connector
Ø  Maximum Data Rate per Lane: 10.3125Gb/s
Ø  Two Wire Serial (TWS) Interface with Digital Diagnostic Monitoring
Ø  RoHS Compliant
Ø  Operating temperature range:
Commercial 0°C to 70°; PLQ-UG10-30DC
