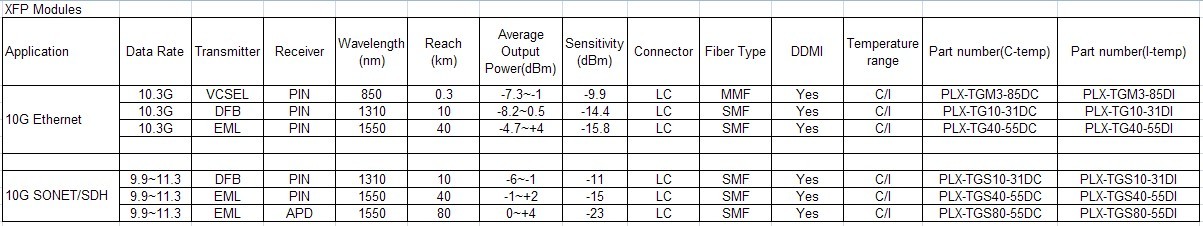

10G SDH/SONET XFP optical transceivers

Features

Ø   1310nm DFB/1550nm EML transmitter and PIN/APD receiver

Ø   Support multi-rate from 9.95G to 11.3G

Ø   Up to 10km/40km/80km on SMF

Ø   XFP MSA Rev 4.5 compliant

Ø   RoHS Compliant and Lead-Free

Ø   2-wire interface with integrated Digital

Ø   Diagnostic monitoring

Ø   XFP MSA package with duplex LC connector

Ø   XFI high speed electrical interface

Ø   Single 3.3V power supply

Ø   +5V and +3.3V power supplies

Ø   +5.0V, +3.3V and +1.8V power supplies

Ø   power dissipation: <2.5W for I-64.1,10GBASE-LR /3.5W for S-64.2b,10GBASE-ER and L-64.2a,10GBASE-ZR

Ø   Operating temperature range:

Commercial -5°C to 70°; Industrial -40°C to 85°C

Ø   Compatible with XFP MSA Rev 4.5

Ø   ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.7

Ø   ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2 GR-1089-CORE

Ø   Immunity compatible with IEC 61000-4-3

Ø   EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B

Ø   Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2

Ø   RoHS compliant with 2002/95/EC 4.1&4.2 2005/747/EC
