Model:SDH/SONET

Applications



Ø   SDH STM-1, S-1.1, L-1.1, L-1.2

Ø   SDH STM-4, S-4.1, L-4.1, L-4.2

Ø   SDH STM-16, I-16.1,S-16.1, L-16.1, L-16.2

Ø   SONET OC-3 IR1, LR1, LR2

Ø   SONET OC-12 IR1, LR1, LR2

Ø   SONET OC-48 SR1, IR1, LR1, LR2

Ø   Other optical links



SDH/SONET Details

Download List

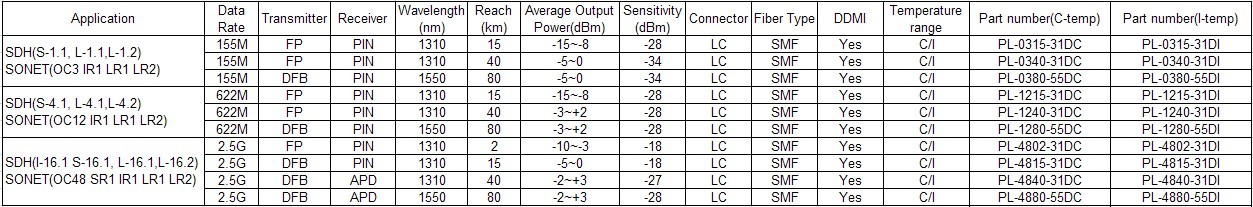

SDH/SONET SFP optical transceivers



Features



Ø   155M/622M/2.5G/155M~2.67G multi rate links

Ø   1310nm FP/DFB laser and 1550nm uncooled DFB laser

Ø   PIN/APD photodetector

Ø   2km/15km/40km/80km SMF transmission distance

Ø   Digital diagnostic monitor interface compatible with SFF-8472

Ø   SFP MSA package with duplex LC connector

Ø   Very low EMI and excellent ESD protection

Ø   +3.3V single power supply

Ø   Operating case temperature

    Commercial Temp: -5 to +70℃; Industrial Temp: -40 to +85

Ø   Compatible with SFP MSA

Ø   Compatible with SFF-8472 Rev 9.5

Ø   Compatible with ITU-T G.957 and G.958

Ø   Compatible with Telcordia GR-253-CORE

Ø   Compatible with FCC 47 CFR Part 15, Class B

Ø   Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I

Ø   Compliant with RoHS
