型号:6G-SDI Video SFP Transceiver


6G-SDI Video SFP Transceiver Applications:



Ø   6G-SDI Video optical transmission with pathological pattern

Ø   This 6G-SDI Video SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber, and also receives an optical SDI signal and converts to an electrical signal for further processing. Wavelength is a fixed 1310nm and suitable for distances up to 10km at 5.94G. The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M.

6G-SDI Video SFP Transceiver 详情

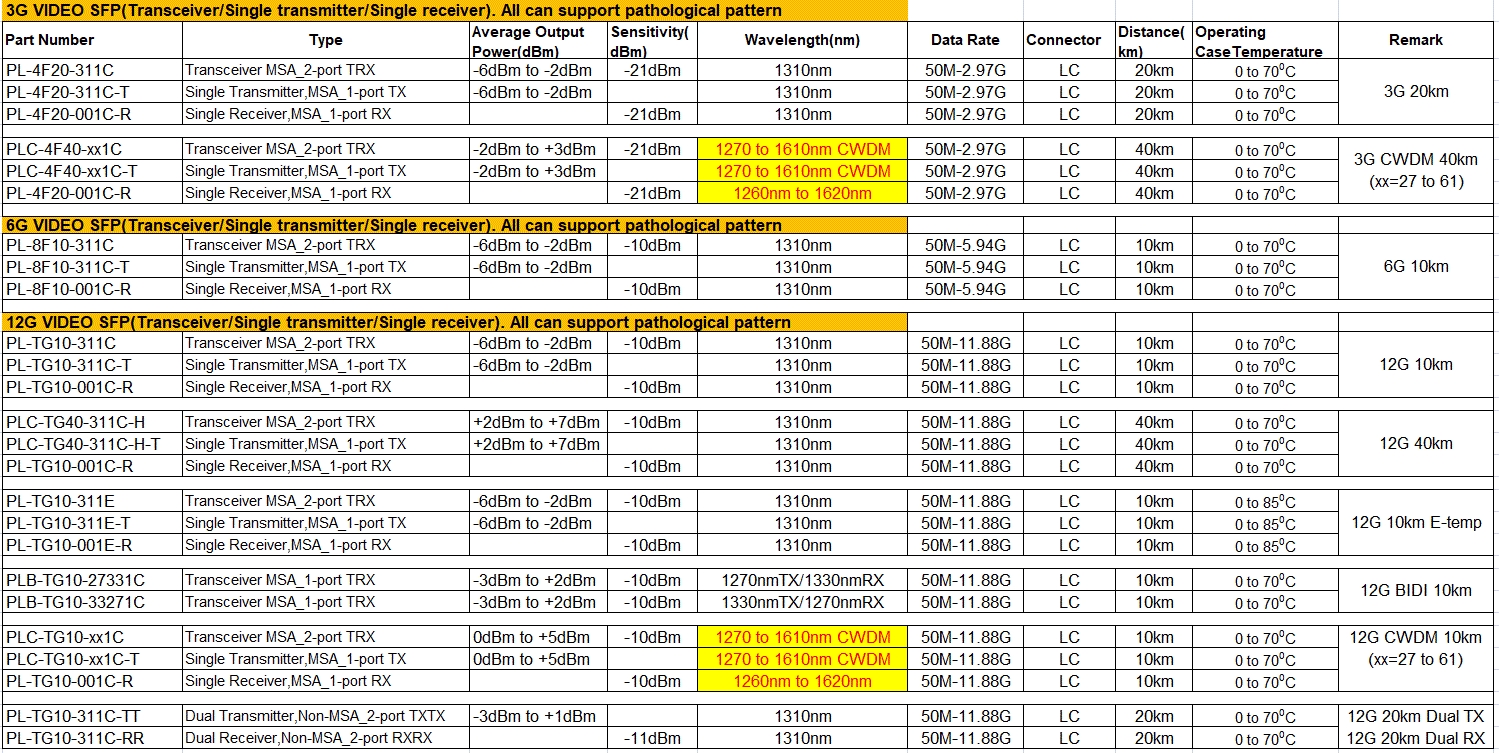

Download List



6G SDI Video SFP optical Transceiver



Features



Ø   Operating data rate up to 5.94 Gbps

Ø   Transmission distance with 9/125μm SMF up to 10km at 5.94G

Ø   1310nm DFB laser transmitter and PIN receiver

Ø   Compliant with SD-SDI,HD-SDI,3G-SDI,6G-SDI

Ø   Support SMPTE 424M, SMPTE 292M, SMPTE 259M

Ø   Support pathological pattern transmission

Ø   Single 3.3V power supply

Ø   Operating case temperature: 0 to +70°C

Ø   100Ω differential AC coupled CML Outputs

Ø   Hot pluggable SFP Footprint LC Connector Interface

Ø   Class I laser product

Ø   Compliant with SFP MSA

Ø   Compliant with FCC 47 CFR Part 15, Class B

Ø   Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I

Ø   RoHS compliance

Ø   Compliant with SMPTE 424M/297M (1080p50/59.94/60 2.97 Gbps)

Ø   Compliant with SMPTE 292M/297M (HDTV - 1.485 Gbps)

Ø   Compliant with SMPTE 259M/297M (SDTV - 270/360 Mbps)
