型号:3G-SDI Video SFP optical Module/Transceiver


3G-SDI Video SFP optical Module/Transceiver Applications:



Ø   3G-SDI Video optical transmission with pathological pattern

Ø   Facilitate the conversion of an electrical SDI signal into an optical signal for transmission over SMF fiber

Ø   Receive an optical SDI signal and converts to an electrical signal for further processing

3G-SDI Video SFP optical Module/Transceiver 详情

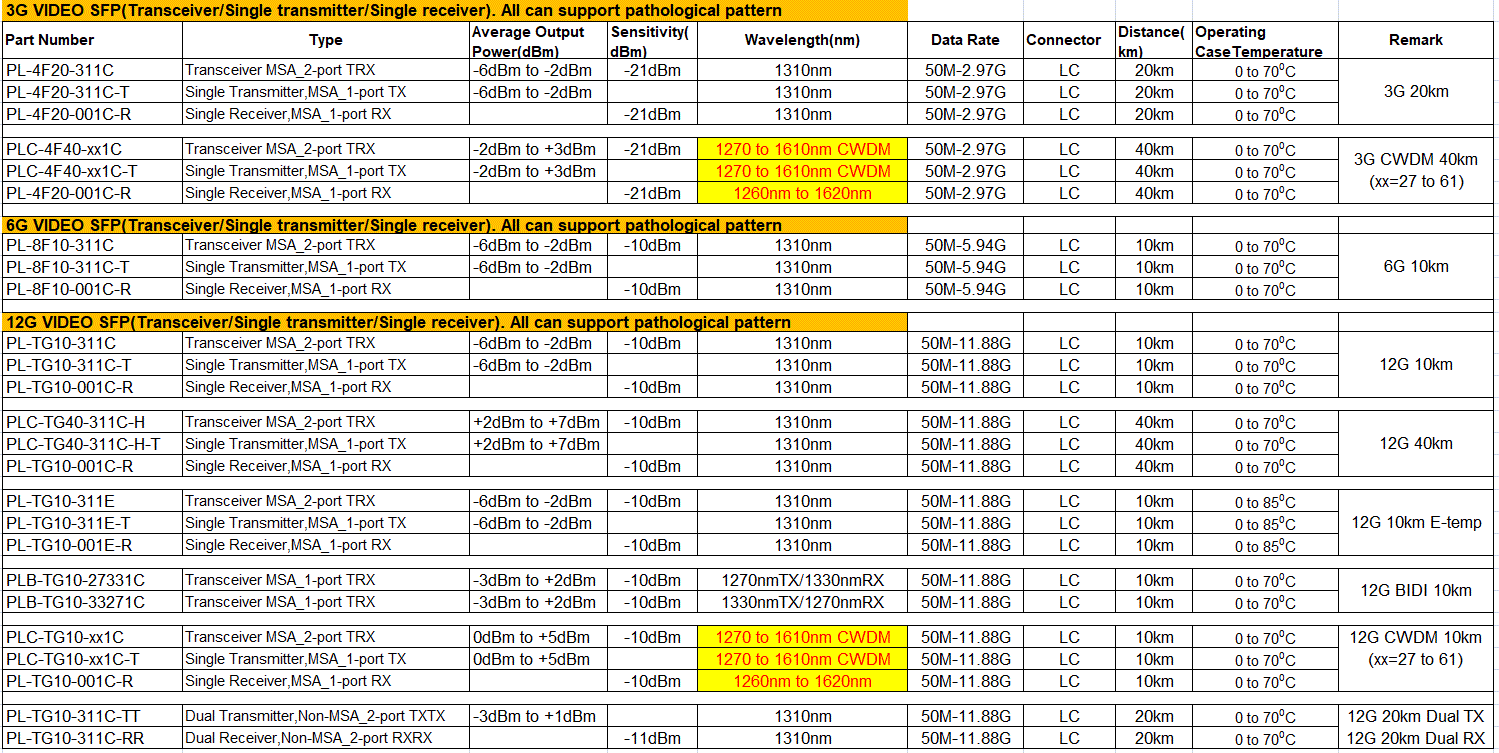

Download List



3G SDI Video SFP optical Module/Transceiver



Features



Ø   Operating data rate up to 2.97 Gbps

Ø   Transmission distance with 9/125μm SMF up to 20km at 2.97G

Ø   1310nm FP/DFB laser transmitter and PIN receiver

Ø   Compliant with SD-SDI,HD-SDI,3G-SDI

Ø   Support SMPTE 424M, SMPTE 292M, SMPTE 259M

Ø   Support pathological pattern transmission

Ø   Single 3.3V power supply

Ø   Operating case temperature: 0 to +70°C

Ø   100Ω differential AC coupled CML Outputs

Ø   Hot pluggable SFP Footprint LC Connector Interface

Ø   Class I laser product

Ø   Compliant with SFP MSA

Ø   Compliant with FCC 47 CFR Part 15, Class B

Ø   Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I

Ø   RoHS compliance

Ø   Compliant with SMPTE 424M/297M (1080p50/59.94/60 2.97 Gbps)

Ø   Compliant with SMPTE 292M/297M (HDTV - 1.485 Gbps)

Ø   Compliant with SMPTE 259M/297M (SDTV - 270/360 Mbps)
