型号：GPON ONU




Description



The GPON ONU transceiver is small form factor module for serial optical data communications such as ITU-T G984.2. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a 1310nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825.
GPON ONU 详情



 Download List

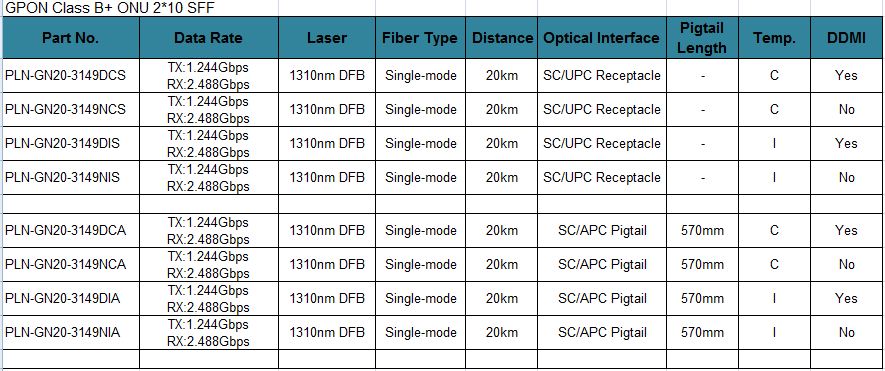

GPON Class B+ ONU 2*10 SFF



Features:



Ø  Single fiber bi-directional data links with asymmetric 1244Mbps upstream and 2488Mbps downstream

Ø  1310nm Burst-mode DFB Transmitter and 1490nm APD-TIA Receiver

Ø  Distance up to 20km

Ø  Single 3.3V Power supply and TTL Logic Interface

Ø  2*10 SFF Package with SC/APC Pigtail or SC Receptacle Connector Interface

Ø  Compliant with MSA SFF Specification SFF-8472

Ø  Compliant with ITU-T G984.2

Ø  Low EMI and Excellent ESD protection
