型号：GEPON ONU


Description



The GEPON ONU transceiver is small form factor pluggable module for serial optical data communications such as IEEE 802.3ah 1000BASE-PX20. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm or 1550nm.
GEPON ONU 详情



Download List

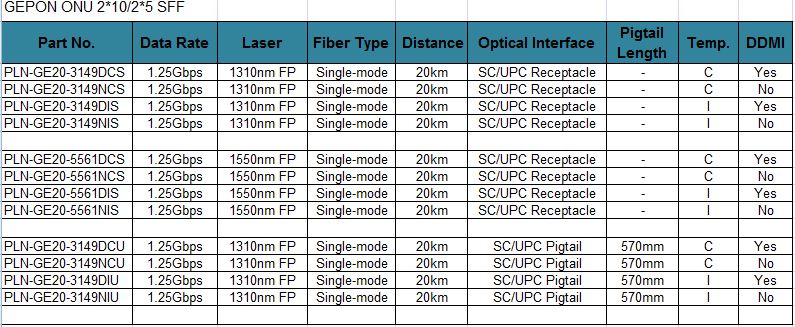

GEPON ONU 2*10/2*5 SFF



Features:



Ø  Operating data rate up to 1.25 Gbps

Ø  Burst-mode FP Transmitter and PIN-TIA Receiver

Ø  Distance up to 20km

Ø  Single 3.3V Power supply and TTL Logic Interface

Ø  Compliant with MSA SFF Specification SFF-8472

Ø  Compliant with IEEE 802.3ah

Ø  Low EMI and Excellent ESD protection
