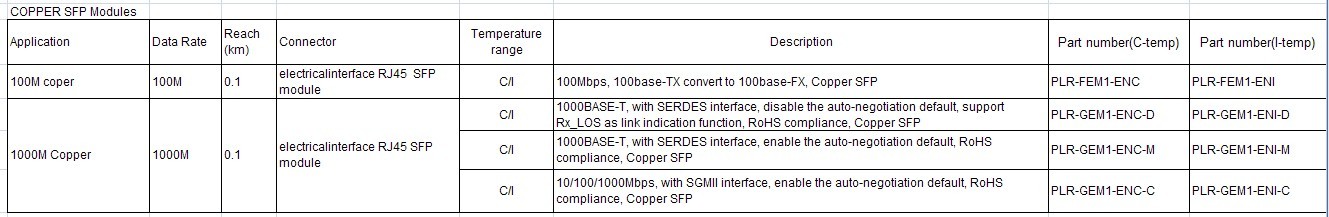

1000BASE-T Copper SFP transceivers

Features

Ø   Up to 1.25Gbps bi-direction data links

Ø   100m transmission over unshielded twisted-pair (UTP) Category 5 Cable

Ø   Support intelligent auto-negotiation 10/100/1000BASE-T operation in host systems with SGMII interface

Ø   Hot-pluggable capability

Ø   SFP form with compact RJ-45 connector

Ø   Very low EMI and excellent ESD protection

Ø   +3.3V single power supply

Ø   Low power dissipation

Ø   Detailed product information in EEPROM

Ø   Physical layer IC can be accessed via 2-wire serial bus

Ø   Operating case temperature:

  Standard: 0 to +70℃; Industrial: -40 to +85℃

Ø   Compatible with SFP MSA

Ø   Compliant with IEEE Std 802.3^TM-2002

Ø   Compatible with FCC 47 CFR Part 15, Class B

Ø   Compliant with RoHS
