型号:10G Ethernet SFP+


Applications

Ø  10GBASE-SR/LR/ER/ZR

Ø  Back to Rack

Ø  Data Center

Ø  High-speed Storage Area Network

Ø  Switch and Router

10G Ethernet SFP+ 详情
 Download List

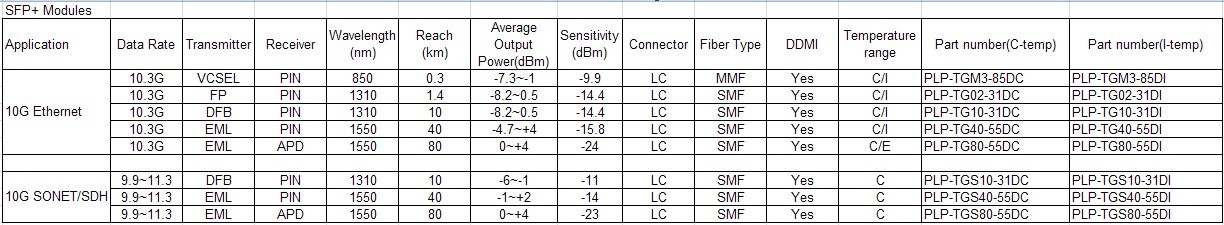

10G Ethernet SFP+ optical transceivers



Features

Ø   850nm VCSEL/1310nm FP and DFB/1550nm EML transmitter and PIN/APD receiver

Ø   Support 10GBASE-SR /LR/ER/ZR application

Ø   Up to 300m on OM3 MMF;1.4km/10km/40km/80km SMF

Ø   Duplex LC connector

Ø   Hot-pluggable with SFP+ form factor

Ø   RoHS Compliant and Lead-Free

Ø   Built-in digital diagnostic functions

Ø   SFI high speed interface

Ø   Single 3.3V power supply

Ø   Low power dissipation: <1.0W for SR and LR/1.5W for ER/2W for ZR

Ø   Operating temperature range:

Commercial -5°C to 70°; Industrial -40°C to 85°C,

Ø   Compatible with SFP+ MSA:SFF-8431 Rev 4.1

Ø   Compatible with IEEE 802.3ae

Ø   Compatible with 10G fiber channel

Ø   ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.7

Ø   ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2 GR-1089-CORE

Ø   Immunity compatible with IEC 61000-4-3

Ø   EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B

Ø   Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2

Ø   RoHS compliant with 2002/95/EC 4.1&4.2 2005/747/EC
