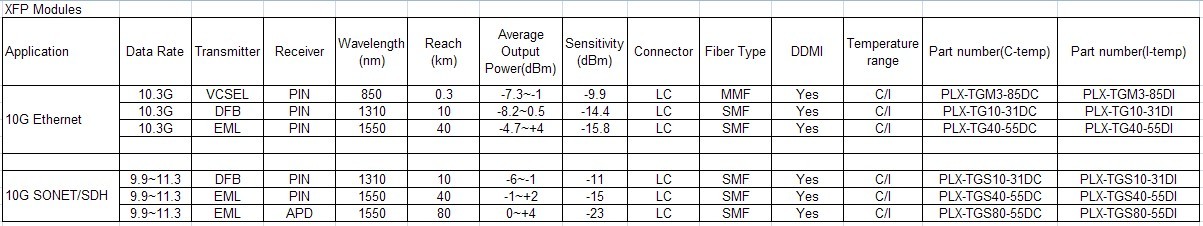

10G Ethernet XFP optical transceivers

Features

Ø   850nm VCSEL/1310nm DFB /1550nm EMLtransmitter and PIN receiver

Ø   Support 10GBASE-SR/LR/ER application

Ø   Up to 300m on OM3 MMF;10km/40km SMF

Ø   XFP MSA Rev 4.5 compliant

Ø   RoHS Compliant and Lead-Free

Ø   2-wire interface with integrated Digital Diagnostic monitoring

Ø   XFP MSA package with duplex LC connector

Ø   XFI high speed electrical interface

Ø   Single 3.3V power supply

Ø   +5V,+3.3V and +1.8V power supplies

Ø   power dissipation: <1.5W with SR/ 2.5W LR/3.5W ER

Ø   Operating temperature range:

Commercial -5°C to 70°; Industrial -40°C to 85°C

Ø   Compatible with XFP MSA Rev 4.5

Ø   Compatible with IEEE 802.3ae

Ø   ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.7

Ø   ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2 GR-1089-CORE

Ø   Immunity compatible with IEC 61000-4-3

Ø   EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B)  VCCI Class B

Ø   Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2

Ø   RoHS compliant with 2002/95/EC 4.1&4.2 2005/747/EC
