型号:Fast Ethernet SFP


Applications



Ø   SDH STM-1, S-1.1, L-1.1, L-1.2

Ø   SONET OC-3 IR1, LR1, LR2

Ø   Fast Ethernet(100BASE-FX,100BASE-LX)

Ø   Other optical links

Fast Ethernet SFP 详情

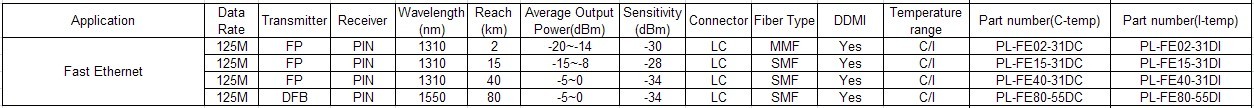

Download List



Fast Ethernet SFP optical transceivers



Features




Ø   Up to 125/155Mbps data-rate

Ø   1310nm FP laser and 1550nm uncooled DFB laser

Ø   PIN photodetector

Ø   2km MMF transmission and 15km/40km/80km SMF transmission

Ø   Digital diagnostic monitor interface compatible with SFF-8472

Ø   SFP MSA package with duplex LC connector

Ø   Very low EMI and excellent ESD protection

Ø   +3.3V single power supply

Ø   Operating case temperature

Ø   Commercial Temp: -5 to +70℃; Industrial Temp: -40 to +85℃

Ø   Compatible with SFP MSA

Ø   Compatible with SFF-8472 Rev 9.5

Ø   Compatible with ITU-T G.957 and G.958

Ø   Compatible with Telcordia GR-253-CORE

Ø   Compatible with FCC 47 CFR Part 15, Class B

Ø   Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I

Ø   Compliant with RoHS
